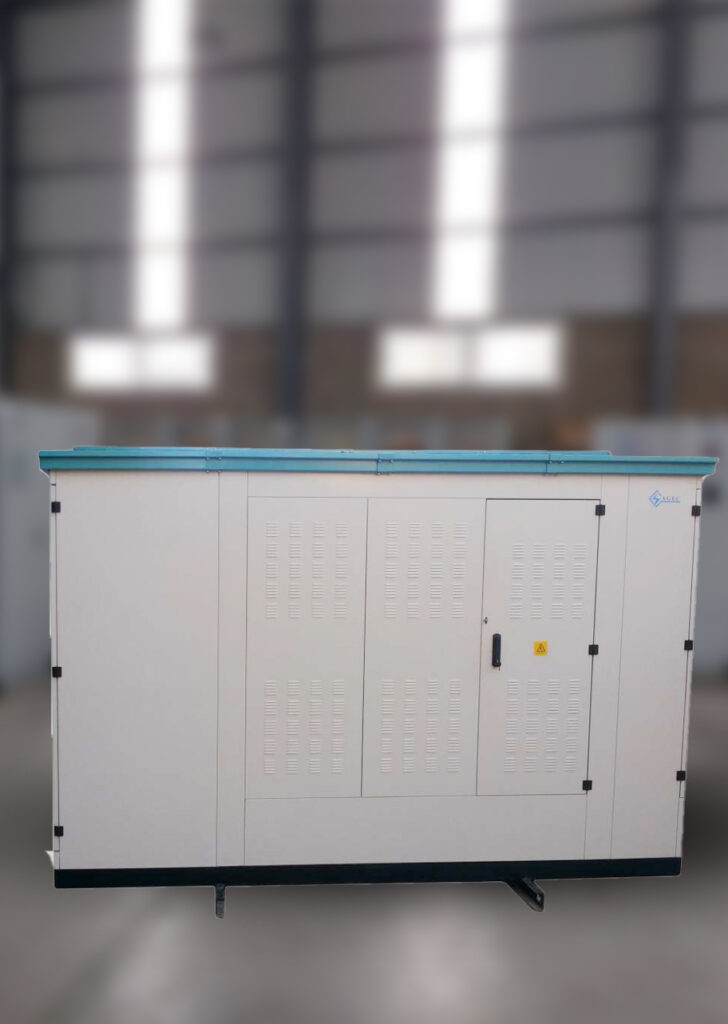

TRANSFORMERS KIOSK
THE TRANSFORMER KIOSK CONSISTS OF THREE
COMPARTMENTS :
• Medium voltage compartment :
Equipped with Air Ring Main Unit.
• Transformer compartment :
This compartment is designed to enclose 3 phase
transformer with power up to 1500KVA
and voltage up to 24KV. The transformer is
connected to the ring main unit through XLPE
cables and to the low voltage switchboard
through cables or copper bus bars.
This compartment is provided with two doors
in both sides.
• Low voltage compartment :
Equipped with low voltage switchboard.
The main incoming is usually a circuit breaker
with thermal and magnetic protection according
to the transformer rating. Different outgoing
feeders are available as circuit breakers, fused
switches, and contactors.

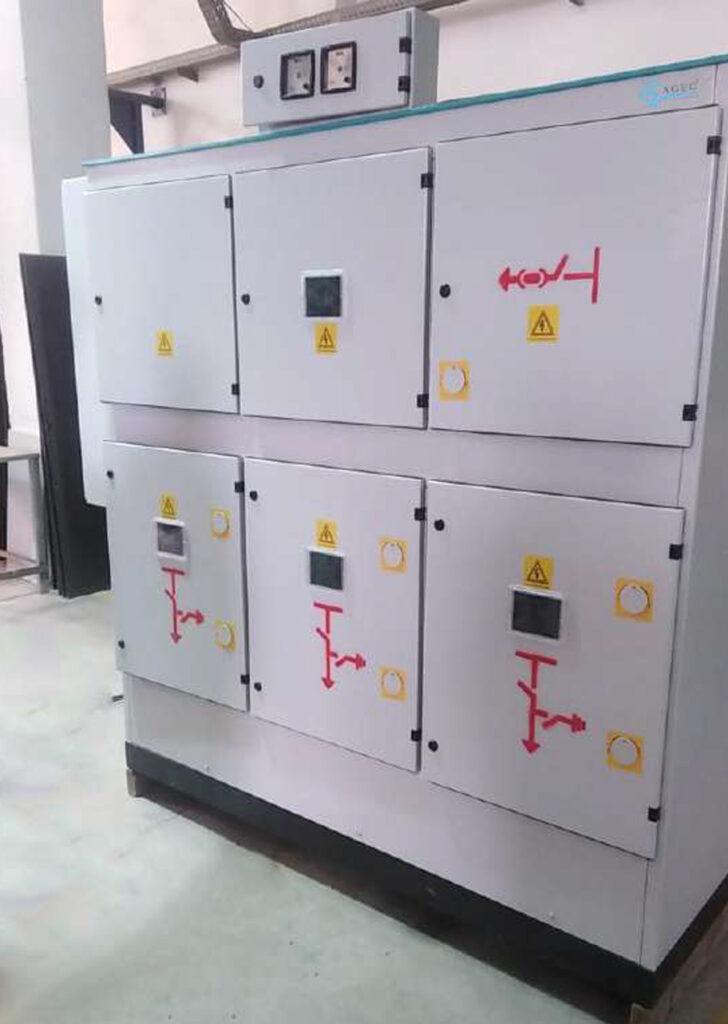

RING MAIN UNITS
The Ring Main Unit (RMU) is designed to provide reliable and efficient medium-voltage power distribution for systems operating at 12kV.
This RMU is equipped with high-quality ELTOM Load Break Switches, engineered to ensure safe and precise switching under normal load conditions.
Built with safety, durability, and space optimization in mind, the unit is suitable for a wide range of electrical distribution applications, including industrial complexes, commercial buildings, and utility networks. Its compact design allows for easy installation in indoor or outdoor substations, even in space-constrained environments.
The ELTOM Load Break Switches integrated into this RMU deliver outstanding performance by enabling secure disconnection and connection of circuits without the need for complex mechanisms or excessive maintenance. The switches are built to withstand harsh operational conditions while maintaining consistent functionality and protection.
The RMU meets international standards for medium-voltage equipment, ensuring high levels of operational safety, reliability, and continuity of service. It’s the perfect solution for modern distribution networks that demand flexibility, minimal maintenance, and uncompromised performance.
RING MAIN UNITS
THE RING MAIN UNIT CONSISTS OF ELTOM LOAD
BREAK SWITCHES FOR VOLTAGE 24KV.
The Ring Main Unit (RMU) is engineered for efficient and reliable medium-voltage power distribution. It features high-performance ELTOM Load Break Switches, specifically designed to handle electrical systems operating at up to 24kV.
Crafted with compactness and safety in mind, this RMU offers a seamless integration into various electrical networks, including industrial plants, commercial infrastructures, and public utility grids. It ensures outstanding operational reliability, ease of maintenance, and enhanced protection against electrical faults.
Equipped with advanced switching technology, the ELTOM Load Break Switches allow safe interruption and connection of electrical circuits under load conditions. The design follows international standards, guaranteeing long-lasting performance, minimum downtime, and operational flexibility in demanding environments.
This RMU is an ideal choice for modern electrical distribution systems requiring space efficiency, high safety standards, and reliable power continuity.

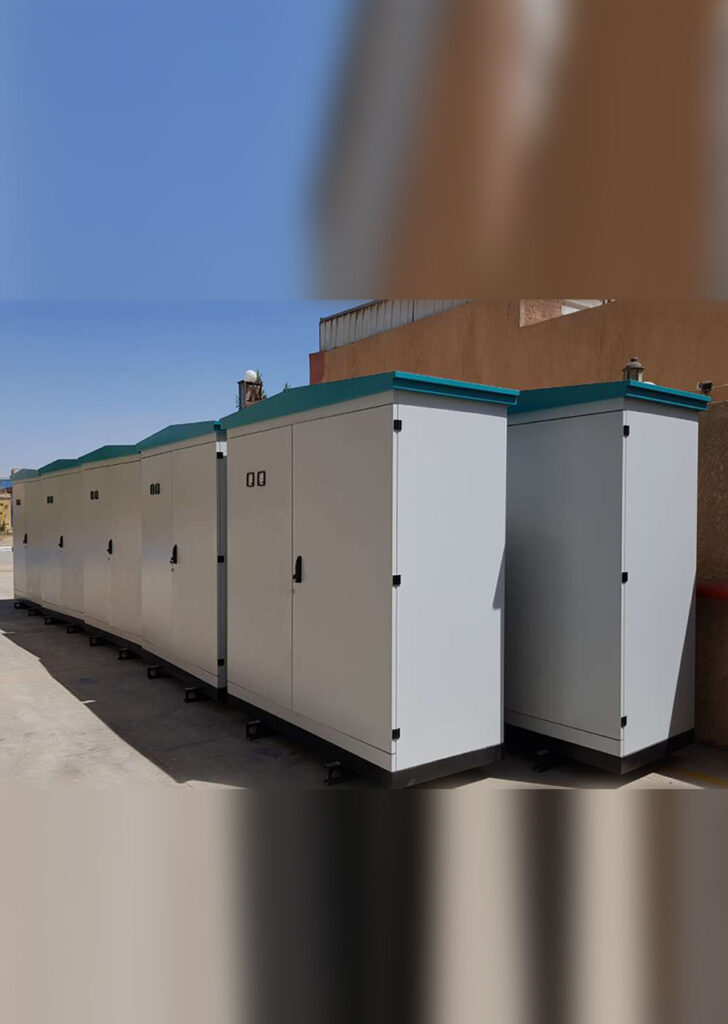

RING MAIN UNITS
The 12kV Ring Main Unit (RMU) for outdoor applications is engineered to deliver exceptional performance in medium-voltage power distribution systems. Specifically designed for outdoor environments, this RMU combines durability, reliability, and compact construction, making it ideal for use in industrial facilities, public utility networks, and remote power distribution points.
Built to withstand harsh weather conditions and demanding operational environments, this RMU is housed in a robust, weatherproof enclosure that ensures long-term protection against moisture, dust, and corrosion. The design allows for easy installation in outdoor substations, street cabinets, or pole-mounted configurations, with minimal footprint requirements.
Equipped with state-of-the-art load break switches and fault protection mechanisms, the RMU enables safe and effective switching, isolation, and protection of medium-voltage circuits operating at 12kV. The unit adheres to international safety and performance standards, ensuring dependable power continuity and reduced downtime.
Key features include:
Fully insulated and sealed construction for enhanced safety and environmental protection.
User-friendly operation and maintenance, minimizing service interruptions.
Flexible configuration options, allowing adaptation to varied network requirements.
Compliance with IEC standards, ensuring high-quality and globally accepted design.
This outdoor RMU offers an ideal solution for modern grid systems that demand resilience, operational efficiency, and long-term reliability, even in challenging terrains and weather conditions.

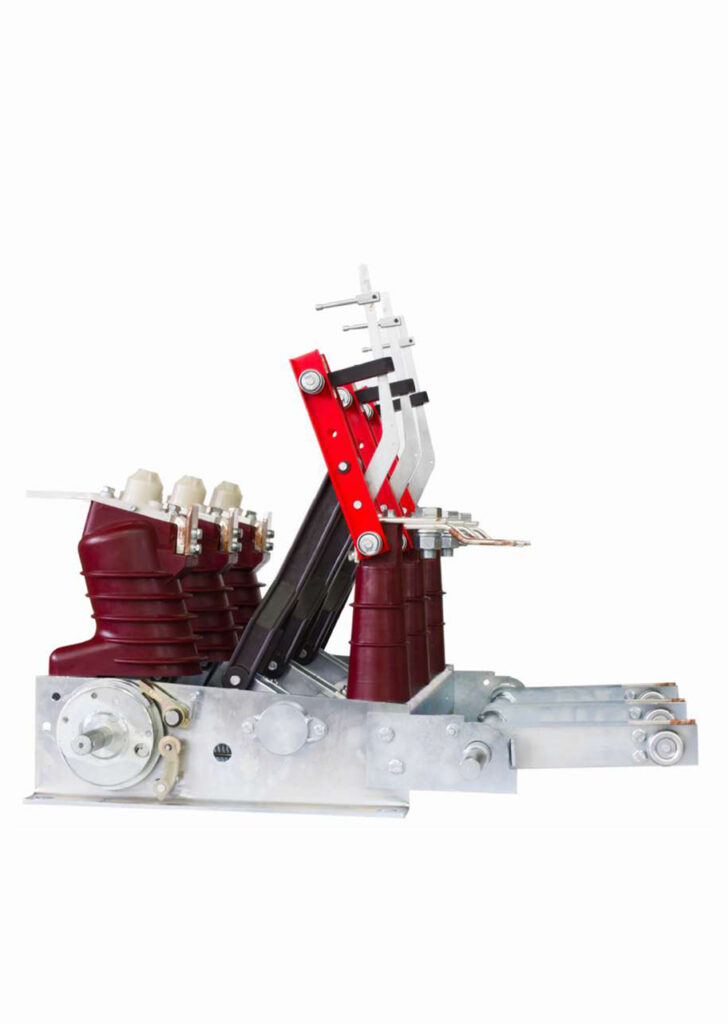

RW-3 POLE INDOOR LOAD BREAK SWITCH
• The load break switches are designed to turn
on and off currents (Voltage 11-24KV).
• RW type load break switch can be used with
earthing switch (top or bottom).
• The permanent contacts are made of copper
flat, covered with a layer of silver.
• During the shut down process arc quenching
occurs at the arcing contact.
• Quenching occurs due to the compressed air
outlet, through a nozzle
(automatically when opening).
MDB PANELS
• Main distribution boards up to 6300A.
• MDB panels including ATS panels, (2 out of 3),
Synchronizing panels …etc.
• Enclosures up to form 4.
• We make MDB’s with AGEC enclosures
and with ABB enclosures.

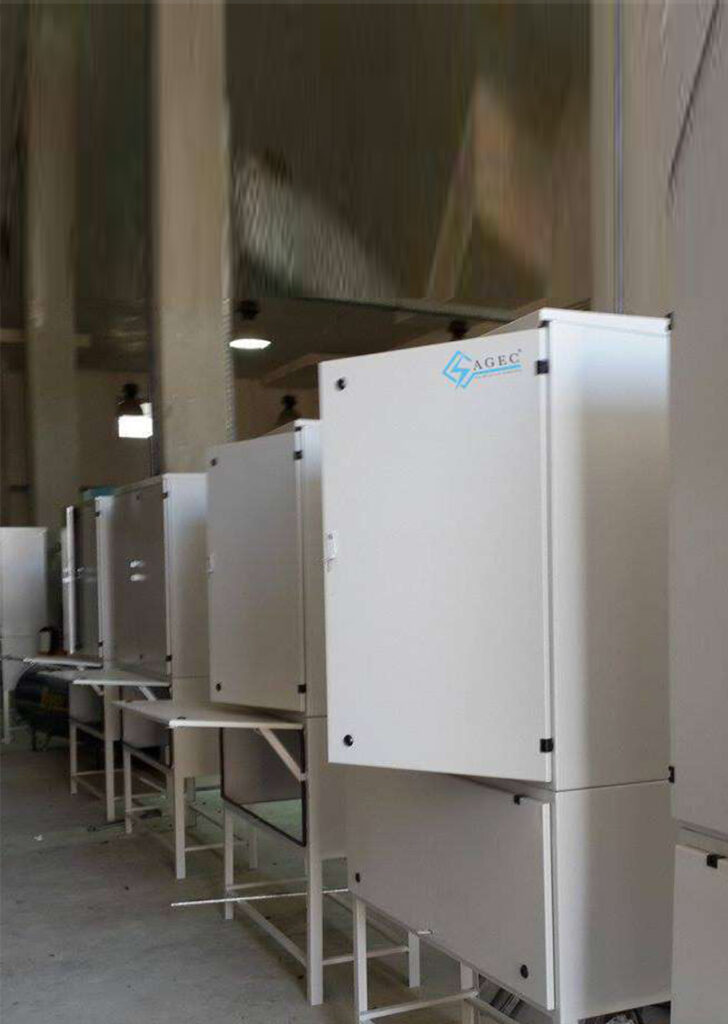

PILLARS
The Medium Voltage Distribution Pillar is designed with 6 or 7 outgoing feeders and is fully compliant with the specifications of the Egyptian Electricity Authority (EEA). Engineered for outdoor installation, this pillar provides safe, reliable, and efficient power distribution for medium-voltage networks.
Constructed with a robust and weather-resistant enclosure, it is suitable for street-level installations, open substations, and utility poles. Each outgoing feeder is equipped with protective and switching components that adhere to national standards, ensuring optimal performance and safety.
Key Features:
Available in 6 and 7 outgoing feeder configurations.
Fully compliant with EEA standards for medium-voltage distribution.
Outdoor-rated, corrosion-resistant enclosure suitable for harsh environments.
Easy access for operation and maintenance.
Suitable for public utility networks, industrial zones, and infrastructure projects.
An ideal solution for modern electrical grids requiring outdoor-ready, dependable, and standard-compliant distribution equipment.
LVDB PANELS
The LVDB Panels (Low Voltage Distribution Boards) are expertly designed to manage and distribute electrical power safely and efficiently at low voltage levels. With a current rating of up to 630A, these panels are suitable for a wide range of residential, commercial, and industrial applications.
Constructed for versatility, the LVDB panels are available in both surface-mounted and recessed-mounted enclosure options, ensuring seamless integration into different installation environments. The panels are manufactured using high-quality AGEC or ABB enclosures, known for their durability, reliability, and compliance with international electrical standards.
Key Features:
Supports electrical loads up to 630 Amperes.
Available in surface-mounted and recessed-mounted configurations.
Offered with AGEC enclosures for robust performance and local adaptability.
Also available with ABB enclosures for premium international standards compliance.
Ideal for power distribution in commercial buildings, factories, residential complexes, and utility networks.
Designed for ease of access, safety, and optimum electrical performance.
These LVDB panels are the perfect solution for projects demanding reliable, scalable, and high-quality low-voltage power distribution systems.

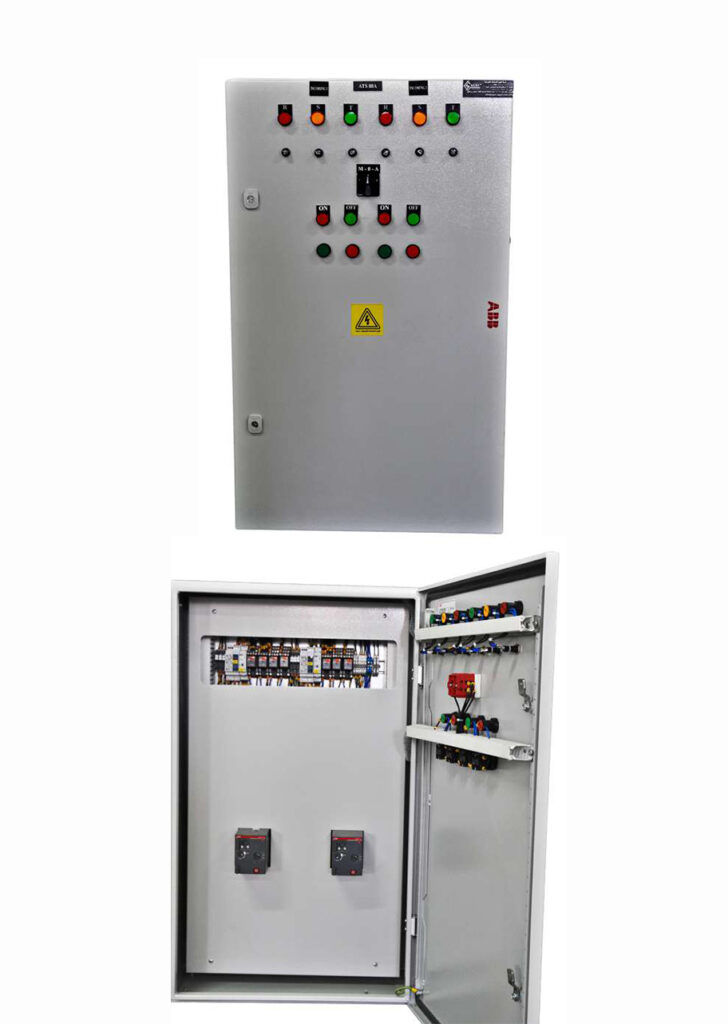

ATS PANELS
The ATS (Automatic Transfer Switch) Panels are designed to ensure continuous and reliable power supply by automatically switching between primary and backup power sources. Engineered to support a wide range of applications, these panels are ideal for critical facilities such as hospitals, data centers, industrial plants, commercial buildings, and emergency systems.
Our ATS panels are available in multiple configurations to meet different power requirements:
ATS Panels using contactors – designed for compact systems and moderate loads.
ATS Panels using MCCBs – capable of handling up to 1600A, providing enhanced protection and control.
ATS Panels using ACBs – built for heavy-duty applications, supporting loads up to 3200A.
Key Features:
Automatic switching between main and backup power sources.
Available with contactors, MCCBs (up to 1600A), or ACBs (up to 3200A).
Enclosures available in AGEC and ABB models.
Suitable for critical power applications requiring uninterrupted power supply.
Customizable configurations for diverse industrial and commercial needs.
Robust design for reliable operation in demanding environments.
The versatility and reliability of these ATS panels make them an essential component in any modern power management system.
PF CORRECTION PANELS
The Power Factor (PF) Correction Panels are designed to improve the efficiency and reliability of electrical power systems by regulating and optimizing the power factor. Suitable for a wide range of industrial and commercial applications, these panels help reduce reactive power penalties, enhance energy efficiency, and extend the lifespan of electrical equipment.
Built for performance and durability, our PF correction panels support capacities of up to 500 kVAR. They are available in robust AGEC enclosures and premium ABB enclosures to meet different project standards and environmental conditions.
Key Features:
Power factor correction capacity up to 500 kVAR.
Available with AGEC and ABB enclosures for optimal safety and performance.
Designed to reduce energy losses and improve electrical system efficiency.
Suitable for factories, commercial buildings, utilities, and heavy-load applications.
Provides automatic or manual compensation for reactive power.
Built with high-quality capacitors and protective components for long-term reliability.
By installing these PF correction panels, users can enhance their electrical systems’ performance, lower utility bills, and ensure compliance with power quality regulations.

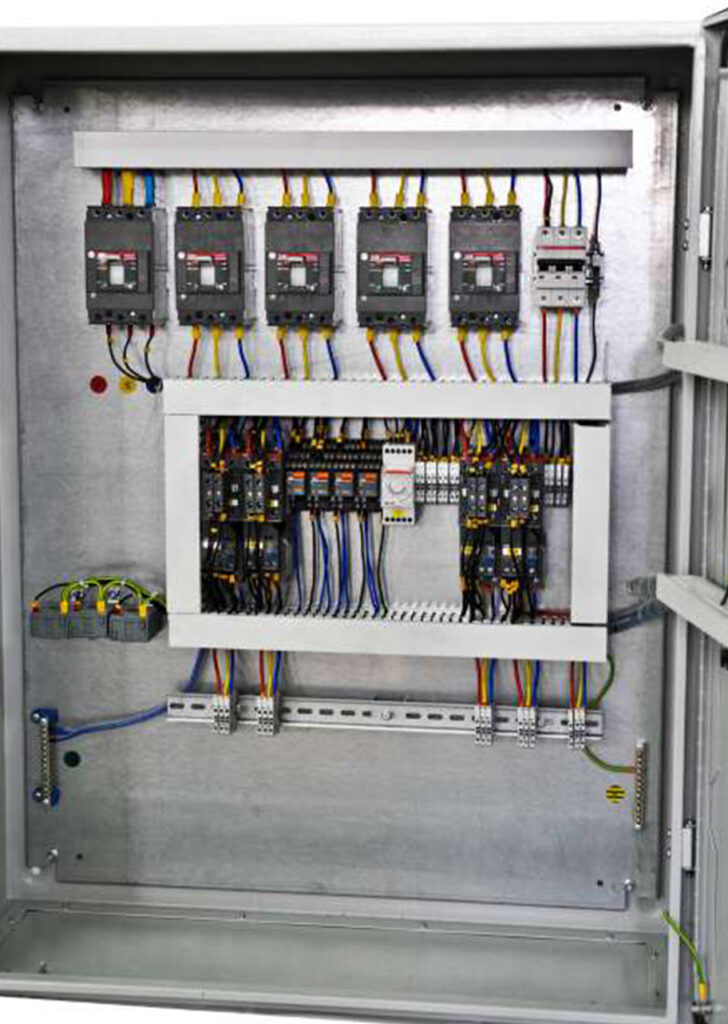

MOTOR STARTER PANELS
The Motor Starter Panels are precision-engineered solutions designed to control and protect electric motors across a wide range of industrial applications. These panels ensure reliable motor operation, reduced electrical stress, and long-term system efficiency.
Our motor starter range includes:
Direct-On-Line (DOL) enclosures – suitable for motors up to 22 kW, ideal for straightforward, high-torque applications.
Star-Delta enclosures – designed for motors up to 90 kW, offering reduced inrush current and mechanical stress during startup.
Soft Starter and Variable Speed Drive (VSD) panels – deliver advanced motor control, energy savings, and smooth acceleration, ideal for dynamic load conditions.
Each panel is built using high-quality components and is engineered to meet industrial safety standards. They are suitable for use in manufacturing facilities, HVAC systems, water treatment plants, and other motor-intensive environments.
Key Features:
Supports multiple motor starting methods: DOL, Star-Delta, Soft Starter, and VSD.
Handles motor loads up to 90 kW, depending on the configuration.
Built for enhanced motor protection, control, and operational safety.
Helps reduce energy consumption, maintenance costs, and electrical wear.
Suitable for both industrial and commercial installations.
Customizable configurations to fit project requirements.
These motor starter panels provide versatile and dependable motor control solutions tailored to meet modern industrial demands.
